Natural Gas Element Before Glycol

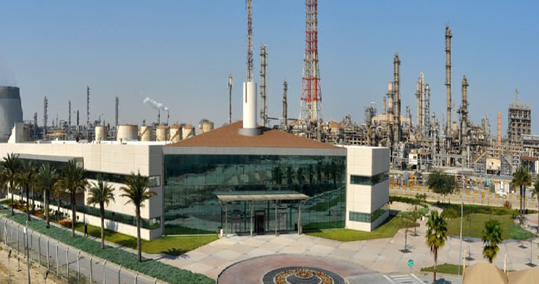

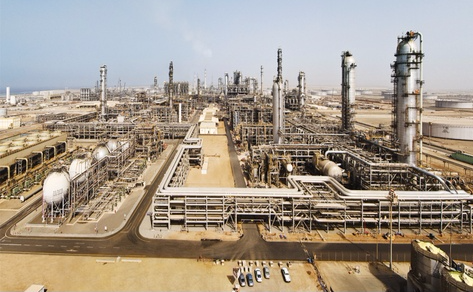

Chevron “Saudi Arabia”

Customer: Chevron “Saudi Arabia”

Product: Oil Filter Element

Challenge: Replacing and upgrading a filter.

Solution: Imported Delonger filters were replaced by Arabo Filters. The filter was modified technichaly by adding external materials to serve as a protection of impurities to guarantee the best oil purity (Polishing Filter).

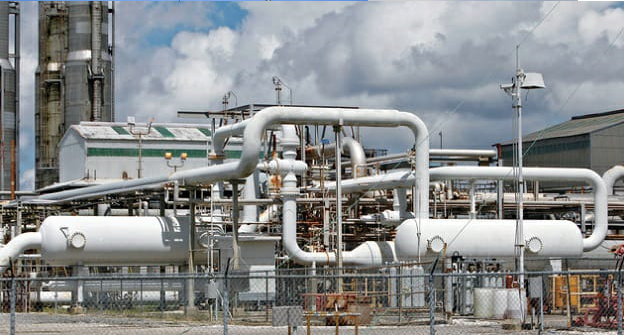

Luberef

Customer: Luberef

Product: Lubricant Oil Filter Element

Challenge: Replacing and upgrading a filter.

Solution: Imported Fuji filters were replaced by Arabo Egyptian Filter. The filter was manufactured with extra trusses to increase its resistance and life time.

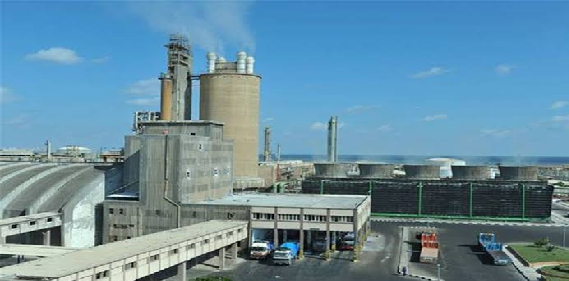

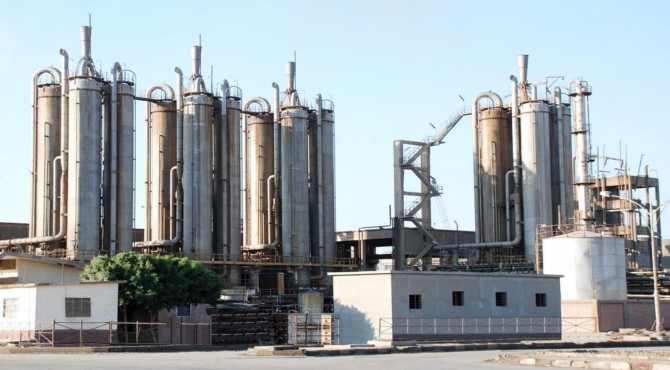

Delta Company for Fertilizers and Chemical industries

Customer: Delta Company for Fertilizers and Chemical industries

Product: Bubble Cap Trays& Valve Trays& Save Trays &Mist Element

Challenge: Working on the client’s schedule (immediate delivery).

Solution: Arabo supported the company during the rehabilitation process by delivering the needed products on time. The process went smoothly and the production lines worked on schedule.

DUSTOMAT	10	14/15	16	21,22,23,27	41,42,43,47	61,62,63,67
intake ǿ mm	100	100	140	125	140	160
filter surface m2	3.5	3.5	10	9.6	9.6	9.6
air flow m3/h	720	720	1.140	1.060	1.330	1.850
Max.negative pressure pa	2.800	2.800	2.000	3.550	3.800	4.600
motor (50 Hz) Kw	1.1	1.1	1.1	2.2	3	3
voltage v	230*	230*	230*	400	400	400
size mm I	1.150 x	1.150 x	1,150 x	1.680 x	1.680 x	1.680 x
w	515 x	515 x	670 x	780 x	780 x	780 x
h	1.640	1.640	1.470	2.030	2.030	2.030

Pulse Jet Cleaning System

DATA SHEET & SPECIFICATIONS

WHISPERSOG	2.2*	3.0*
max.air flow m3/h	300	216
intake diameter mm	50	50
max.negative pressure pa	21.000	31.500
voltage v	400	400
motor kw	2.2	3.0
filter surface m2	2	2
weight kg	105	120
frequency Hz	50	50
dust collection containe Itr	80	80
size I x w x h mm	1.050x640x1.250	1.050x640x1.250
order number	83.101	83.102

Mobile Fan

DATA SHEET & SPECIFICATIONS

Model	size (Inch) (A)	Flow rate (m3/mm)	voltage (V)	Frequency (HZ)	speed (r/min)	Static pressure (Pa)	Phase
SD-S20	8	25/35	220-240	50-60 HZ	2900-3300	250-420 Pa	1
SD-S25	10	45	220-240	50-60 HZ	2900-3300	300-450 Pa	1
SD-S30	12	62	220-240	50-60 HZ	2900-3300	350-500 Pa	1
SD-S50	20	16/188	380	50-60 HZ	1450-1700	150-200 Pa	3
SD-S54	24	290/340	380	50-60 HZ	1450-1700	280-320 Pa	3

Leaf Filter

DATA SHEET & SPECIFICATIONS

Filter Area {m2}	Filter Leaves	Filter Volume {dm2}	Floor Space {mmxmm}
2	5	210	1420×1150
5	7	430	1540×1210
8	9	760	1710×1890
12	7	1050	1945×1830
14	9
19	8	1690	2360×1600
22	10
24	12
27	10	2520	2720×1790
31	12
34	14
37	12	2855	2720×1790
40	14
45	15	3540	3100×2080
48	17
54	15	3990	3100×2080
57	17
61	14	5440	3100×2080
67	16
72	18
80	16	7115	4300×2710
86	18
92	20
95	21
99	18	9475	4500×2350
107	20
113	22
118	24

Filter Area {m2}	Filter Leaves	Filter Volume {dm2}	Floor Space {mmxmm}
2	5	210	1420×1150
5	7	430	1540×1210
8	9	760	1710×1890
12	7	1050	1945×1830
14	9
19	8	1690	2360×1600
22	10
24	12
27	10	2520	2720×1790
31	12
34	14
37	12	2855	2720×1790
40	14
45	15	3540	3100×2080
48	17
54	15	3990	3100×2080
57	17
61	14	5440	3100×2080
67	16
72	18
80	16	7115	4300×2710
86	18
92	20
95	21
99	18	9475	4500×2350
107	20
113	22
118	24

Single-bag Filter Housing

DATA SHEET & SPECIFICATIONS

MOD.	Screen Area	Maximum FlowRate	Connections	Dimentions	Weight
in\out	Drain	A	B	C	D	E	F	X
(cm2)	(m2)	(m3/h)	Liter	(in-mm)	(in-mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
Arabo40	2.200	341	40	666	2η	2/1^η	366	206	1070	790	640	420	700	27
Arabo60	2.200	341	60	999	80	2/1^η	406	206	1070	790	640	435	700	32
Arabo75	3.300	512	75	1249	80	2/1^η	470	273	1190	860	610	430	700	44
Arabo90	3.300	512	90	1498	100	2/1^η	470	273	1190	860	610	430	700	45
Arabo110	5.400	837	110	1831	100	2/1^η	470	273	1470	1140	890	430	1000	57
Arabo250	5.400	837	250	4163	150	2/1^η	473	273	1480	1150	900	430	1000	59
Arabo380	5.400	873	380	6328	150	2/1^η	473	273	1580	1195	895	430	1000	63

MOD.	Screen Area	Maximum FlowRate	Connections	Dimentions	Weight
in\out	Drain	A	B	C	D	E	F	X
(cm2)	(m2)	(m3/h)	Liter	(in-mm)	(in-mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
Arabo40	2.200	341	40	666	2η	2/1^η	366	206	1070	790	640	420	700	27
Arabo60	2.200	341	60	999	80	2/1^η	406	206	1070	790	640	435	700	32
Arabo75	3.300	512	75	1249	80	2/1^η	470	273	1190	860	610	430	700	44
Arabo90	3.300	512	90	1498	100	2/1^η	470	273	1190	860	610	430	700	45
Arabo110	5.400	837	110	1831	100	2/1^η	470	273	1470	1140	890	430	1000	57
Arabo250	5.400	837	250	4163	150	2/1^η	473	273	1480	1150	900	430	1000	59
Arabo380	5.400	873	380	6328	150	2/1^η	473	273	1580	1195	895	430	1000	63

Multi-bag Filter Housing

DATA SHEET & SPECIFICATIONS

MOD.	Screen Area	Maximum FlowRate	Connections	Dimentions	Weight
in\out	Drain	A	B	C	D	E	F	X
(cm2)	(m2)	(m3/h)	Liter	(in-mm)	(in-mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
Arabo40	2.200	341	40	666	2η	2/1^η	366	206	1070	790	640	420	700	27
Arabo60	2.200	341	60	999	80	2/1^η	406	206	1070	790	640	435	700	32
Arabo75	3.300	512	75	1249	80	2/1^η	470	273	1190	860	610	430	700	44
Arabo90	3.300	512	90	1498	100	2/1^η	470	273	1190	860	610	430	700	45
Arabo110	5.400	837	110	1831	100	2/1^η	470	273	1470	1140	890	430	1000	57
Arabo250	5.400	837	250	4163	150	2/1^η	473	273	1480	1150	900	430	1000	59
Arabo380	5.400	873	380	6328	150	2/1^η	473	273	1580	1195	895	430	1000	63
