Panel Air Filter
| Width (mm) | Height (mm) | Depth (mm) | Air Flow Capacity (mm) |
|---|---|---|---|
| 289 | 595 | 20 | 1700 |
| 495 | 595 | 20 | 2500 |
| 595 | 595 | 20 | 3400 |
| 495 | 495 | 20 | 2400 |
| 242 | 495 | 20 | 1200 |
| 395 | 495 | 20 | 1850 |
| 395 | 624 | 20 | 2400 |
| 495 | 624 | 20 | 3000 |
| 289 | 595 | 45 | 1700 |
| 495 | 595 | 45 | 2500 |
| 595 | 595 | 45 | 3400 |
| 495 | 495 | 45 | 2400 |
| 242 | 495 | 45 | 1200 |
| 395 | 495 | 45 | 1850 |
| 495 | 624 | 45 | 2400 |
| 495 | 624 | 45 | 3000 |
| 289 | 595 | 95 | 2150 |
| 495 | 595 | 95 | 3400 |
| 595 | 595 | 95 | 4250 |
| 495 | 495 | 95 | 3000 |
| 395 | 495 | 95 | 2400 |
| 395 | 624 | 95 | 3000 |
| 495 | 424 | 95 | 3750 |
| 442 | 595 | 95 | 3150 |
| 624 | 725 | 95 | 5100 |
Hydraulic Oil Filter
| Model | Normal Flow rate (L/min) | Pressure Loss (Mpa) | Filteration Precision (µm) | Overall and connecting dimensions (mm) | ||
|---|---|---|---|---|---|---|
| HF-16 | 16 | < 0.01 | D | H | M(DI) | |
| HF-25 | 25 | 80 | Ø 38 | 85 | M18*1.5 | |
| HF-40 | 40 | Ø 46 | 125 | M22*1.5 | ||
| HF-63 | 63 | Ø 46 | 125 | M27*1.5 | ||
| HF-100 | 100 | 100 | Ø 73 | 154 | M33*2 | |
| Ø 73 | 154 | M42*2 | ||||
| HF-160 | 160 | 180 | Ø 84 | 201 | M48*2 | |
| HF-250 | 250 | Ø 88 | 203 | 54 | ||
| HF-400 | 400 | Ø 105 | 250 | 70 | ||
| HF-630 | 630 | 125 | Ø 118 | 301 | 85 | |
| HF-225 | 225 | Ø 155 | 168 | G2 |
| Filtration range | Basis Weight | caliper at 6.7 N/cm2 | Pressure drop at 40 cm/s | Air permeability at 2 mbar | Tensile strenght MD | Tensile strenght CD | Mean Flow pore size (coultter) | Dirt Holding capacity |
|---|---|---|---|---|---|---|---|---|
| 3µm | g/m2 | mm | mbar | I/m2s | N/15mm | N/15mm | m | Mg/200 cm2 |
| 65 | 0.23 | 8.7 | 110 | 8 | 6.5 | 5.9 | 1900 | |
| 75 | 0.42 | 11.2 | 90 | 17 | 12 | 7.8 | 2200 | |
| 5µm | g/m2 | mm | mbar | I/m2s | N/15mm | N/15mm | m | Mg/200 cm2 |
| 60 | 0.23 | 7.4 | 180 | 12 | 9 | 7.3 | 2300 | |
| 55 | 0.30 | 7.5 | 180 | 18 | 13 | 10 | 2700 | |
| 10m | g/m2 | mm | mbar | I/m2s | N/15mm | N/15mm | um | Mg/200 cm2 |
| 64 | 0.24 | 3.8 | 260 | 20 | 6 | 10.8 | 2500 | |
| 100 | 0.58 | 4.5 | 210 | 22 | 16 | 14 | 3200 | |
| 20-25 µm | g/m2 | mm | mbar | I/m2s | N/15mm | N/15mm | um | Mg/200 cm2 |
| 63 | 0.25 | 1.7 | 550 | 12 | 8 | 17.6 | 2700 | |
| 65 | 0.40 | 2 | 480 | 16 | 12 | 19 | 3900 |
© 2016 Arabo. All rights reserved. Design by The Seven Layers.
Wire Mesh Filters
| Mesh | Wire Dia (MM) | Opening (Microns) |
|---|---|---|
| 2 | 1.8 | 10.9 |
| 3 | 1.5 | 7.06 |
| 4 | 1.0 | 5.35 |
| 7 | 1.0 | 2.63 |
| 10 | 0.6 | 1.94 |
| 12 | 0.5 | 1.62 |
| 16 | 0.35 | 1218 |
| 20 | 0.4 | 820 |
| 30 | 0.3 | 537 |
| 40 | 0.23 | 395 |
| 50 | 0.2 | 338 |
| 60 | 0.15 | 282 |
| 70 | 0.12 | 273 |
| 80 | 0.13 | 198 |
| 90 | 0.12 | 162 |
| 100 | 0.1 | 139 |
| 120 | 0.09 | 122 |
| 150 | 0.063 | 105 |
| 180 | 0.053 | 80 |
| 200 | 0.153 | 72 |
| 250 | 0.040 | 62 |
| 280 | 0.040 | 51 |
| 325 | 0.035 | 44 |
Natural Gas Element
Design Conditions
Gas Flowrate: 252, 000 kg/h
Gas density: 57, 7 kg/m3
Liquid entrainment: 200 kg/h
Temperature: 115°C
Pressure: 80 kg/cm2
Cartridge pressure drop during operation: 450 mmH20
Cartridge max allowable differential pressure: 0.15 kg/cm2
Wind: 160 km/h (Code UBC)
Earthquake: UBC Zone 1
Guarantee
The product guarantees the following performance:
-Efficiency of 100% for droplets greater than 3 microns
-Efficiency of 99% for droplets less than 3 microns
– Max pressure drop: 0, 1 kg/cm2
Mechanical characteristics
Diameter: 1000 mm
Height: 6165mm
Volume: 4m3
Shell Thickness: 38 mm
Corrosion allowance: 3 on c.s. mm
Weight-empts/full: 5600/9550 kg
Filtering type: DIA 762×3350
Filtering medium type: Fiber Cartridge
Filtering medium model: BB-FRF-30132 ID 635 OD 762
Cartridge dimension
-Height: 3350
-Int. diam: 635
-Ext.diam.: 762
Filtering area:72970 cm2
Type of filter support: Skir
Materials
Shell and heads: Carbon Steel
Internals: (removable components) AISI 316
Flanges type: ANSI
Flange rating: 600
Flange facing: RJ
Process description
The wet gas coming from LTS units is mixed with the recycle gas coming from 32-k-1 A/B. the mixed gas can carry drops of water Dietilenglycol and HC. This filtration unit must separate all the drops before the molecular sieves beds.
Operating conditions
Gas flowrate: 252000 kg/h
Gas density: 57.7 kg/m3
Liquid entrainment: 200 kg/m3
Liquid density: 1000 kg/m3
Temperature: 33/42 °C
Pressure: 71 kg/cm2g

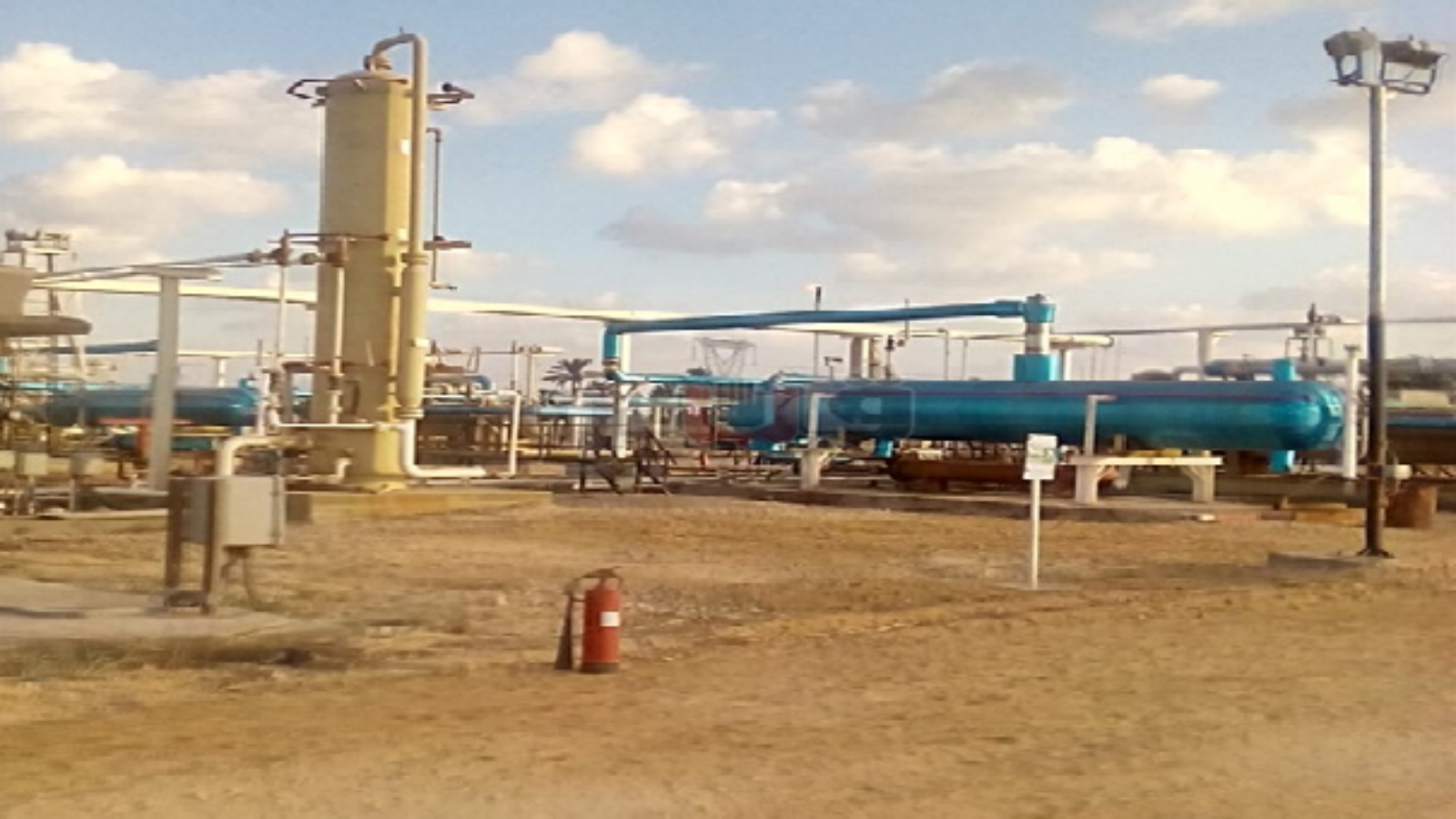

Abu Madi Gas Field
Customer: Petrobel (Belayim Petroleum Company)
Product: High efficiency Filter Element
Challenge: unavailability importation problem , factory closed.
Solution: Arabo manufactured & delivered the filter with the finest raw materials.
Abu Qir Cement Company
Customer: Abu Qir Cement Company
Product: Bubble Cap Trays
Challenge: a customized Filter.
Solution: The product was manufactured by applying the Reverse Engineering Process using st.st 321 materials. All the accessories were provided.
MIDOR (Egyptian General Petroleum Corporation)
Customer: MIDOR
Product: Gasoline Filter Element
Challenge: a customized filter.
Solution: A high temperature resistant filter was manufactured to support the process of fuel impurity separation.
El Nasr Petrol Company
Customer: El Nasr Petrol Company
Product: Jet Fuel Filter
Challenge: customized filter.
Solution: A customized 3 Micron filters were produced with excellent permeability to guarantee the best purity and protect the final filter.
Egyptian Natural Gas Company “Gasco”
Customer: Egyptian Natural Gas Company “Gasco”
Product: Gas Filter Element
Challenge: High cost filter
Solution: Arabo minimize the filter price with almost 50% of it’s original price without affecting the quality level and standards of the filters , where based on the international standards which increase the life time and this reflects on saving cost of production.

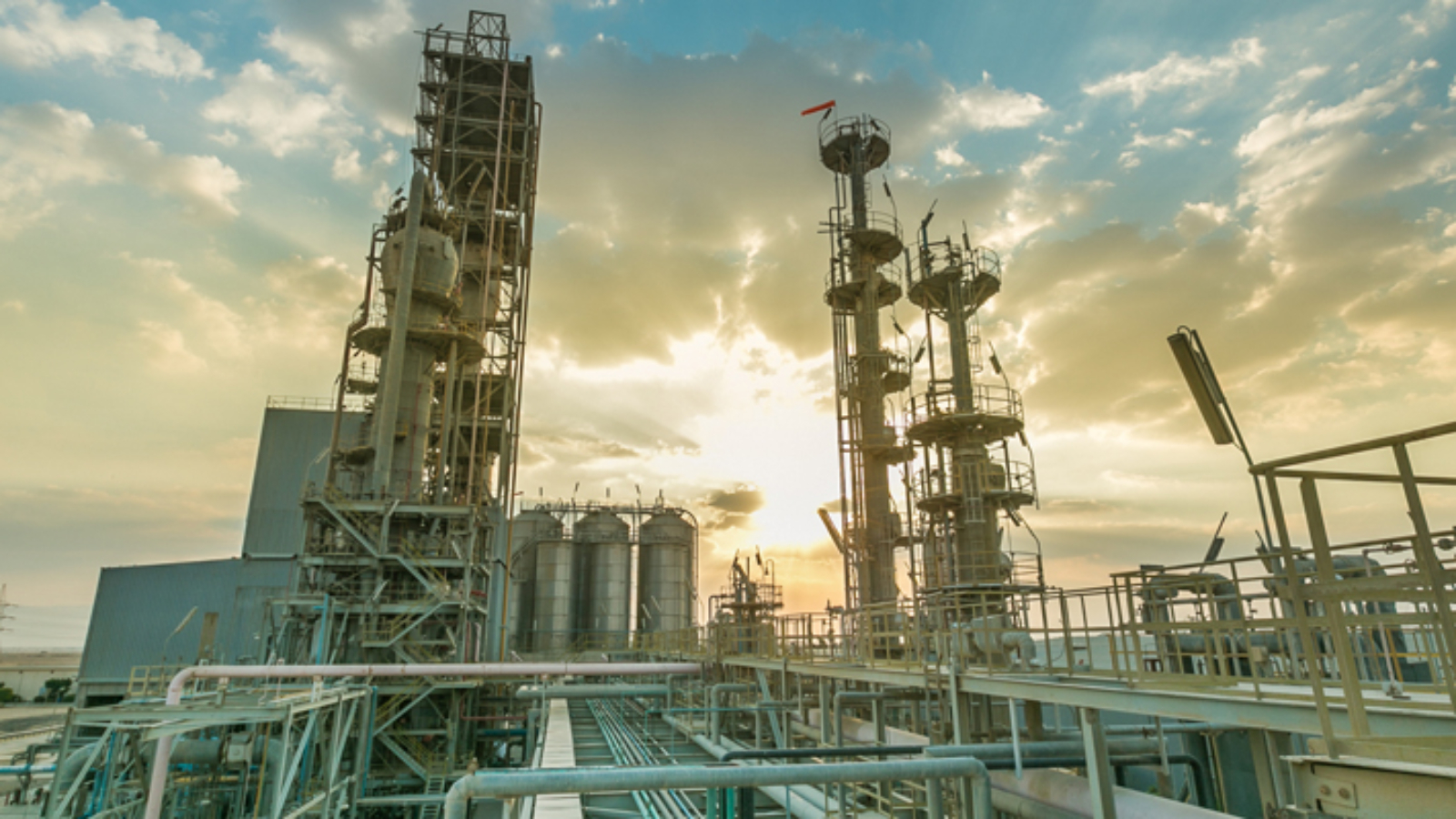

OPC (Oriental Petrochemicals Co.)
Customer: OPC
Product: Save Pack Screen Wire Mesh
Challenge: The incompetence of the exported filter ( technical problem ).
Solution: Arabo manufactured a high efficiency and heavy duty filter by adding a protection layer which wasn’t available in the exported one. The layer extended the life time of the filter and help the process of installation and di-installation of the filter .
Port Fouad Gas Field
Customer: Petrobel (Belayim Petroleum Company)
Product: Raw Gas Filter Element
Challenge: Water Concentration in Gas which affect Frame 5 Turbines
( technical problem ).
Solution: Arabo manufactured & deliver a filter , helps in eliminators the problem .
Zohr Gas Field
Customer: Petrobel (Belayim Petroleum Company)
Product: Amin Filter Element& Ro Filter Element
Challenge: Unavailability High Price .
Solution: Arabo manufactured & delivered the filters
Dust Collectors Spunbond
| KF-3500 | KF-4300 | KF-5400 | KF-7000 | |
|---|---|---|---|---|
| Filter Surface m2/number ofcartridges | 60/4 | 64/4 | 96/6 | 144/9 |
| Max.negative Pressure Pa | 3.800 | 3.800 | 4.400 | 4.800 |
| Max.air flow m3/h | APPROX.6.100 | APPROX.7.300 | APPROX.10.300 | APPROX.13.200 |
| Motor KW | 5.5 | 7.5 | 11 | 15 |
| Dust Collection Container I | 50 | 50 | 50 | 50 |
| Intake/Outlet diameter mm | 280/315 | 315/355 | 355/400 | 450/500 |
| Size (B/T/H) | 1.400 x 1.350x 3.400 | 1.400 x 1.350x 3.160 | 1.820 x 1.450x 3.660 | 1.880 x 1.990x 3.700 |
| order number | 663.060 | 663.064 | 663.096 | 663.144 |
Dust Collectors Bags
| KF-3500 | KF-4300 | KF-5400 | KF-7000 | |
|---|---|---|---|---|
| Filter Surface m2/number of hoses | 10.5/20 | 17/32 | 25/48 | 33/48 |
| Max.negative Pressure Pa | 2.600 | 3.200 | 3.200 | 3.800 |
| Max.air flow m3/h | APPROX.3.500 | APPROX.4.300 | APPROX.4.300 | APPROX.7.000 |
| Motor KW | 3 | 4 | 5.5 | 7.5 |
| Dust Collection Container I | 50 | 50 | 50 | 50 |
| Intake/Outlet diameter mm | 200/250 | 250/300 | 300/355 | 355/400 |
| Size (B/T/H) | 1.400 x 1.350 x 3.400 | 1.820 x 1.780 x 4.000 | 1.880 x 1.780 x 4.000 | 1.880 x 1.780 x 4.400 |
Oil Separator
| Code | Flow rate mm/min | D1 mm | D2 mm | D3 mm | D4 mm | H mm | D6 mm | D7 mm | D8 mm |
|---|---|---|---|---|---|---|---|---|---|
| 216-123 | 2 | 135 | 218 | 89 | 180 | 200 | 12-Ǿ14 | 8 | 1 |
| 216-124 | 3 | 135 | 220 | 89 | 193 | 250 | 6-Ǿ14 | 8 | 1 |
| 216-125 | 3 | 135 | 230 | 72 | 216 | 175 | 8-Ǿ17 | 2 | |
| 216-126 | 3.6 | 135 | 220 | 89 | 193 | 300 | 8-Ǿ13 | 8 | 1 |
| 216-127 | 3 | 152 | 202 | 72 | 250 | 8 | 2 | ||
| 216-128 | 3.5 | 175 | 270 | 119 | 230 | 260 | 14-Ǿ14 | 1 | |
| 216-129 | 3.5 | 175 | 240 | 119 | 260 | 3 | |||
| 216-130 | 3 | 170 | 300 | 109 | 272 | 225 | 8-Ǿ15.5 | 3 | |
| 216-131 | 4.5 | 175 | 300 | 119 | 265 | 305 | 12-Ǿ14.5 | 3 | |
| 216-132 | 6 | 175 | 300 | 119 | 265 | 480 | 12-Ǿ14.5 | 3 | |
| 216-133 | 10 | 220 | 268 | 129 | 355 | 2 | |||
| 216-134 | 12 | 220 | 268 | 129 | 400 | 2 | |||
| 216-135 | 12 | 220 | 268 | 129 | 800 | 2 | |||
| 216-136 | 8 | 250 | 360 | 182 | 320 | 350 | 16-Ǿ14 | 3 | |
| 216-137 | 10 | 250 | 355 | 182 | 320 | 660 | 12-Ǿ18 | 3 | |
| 216-138 | 6 | 275 | 380 | 210 | 275 | 3 | |||
| 216-139 | 8 | 275 | 314 | 210 | 314 | 3 | |||
| 216-140 | 12 | 275 | 380 | 210 | 580 | 3 | |||
| 216-141 | 20 | 275 | 400 | 190 | 355 | 810 | 16-Ǿ18 | 2 | |
| 216-142 | 21 | 300 | 350 | 213 | 750 | 2 | |||
| 216-143 | 19 | 300 | 355 | 237 | 660 | 3 | |||
| 216-144 | 12 | 300 | 353 | 237 | 470 | 3 | |||
| 216-145 | 25 | 300 | 355 | 273 | 820 | 2 | |||
| 216-146 | 18 | 375 | 440 | 280 | 670 | 2 | |||
| 216-147 | 31 | 400 | 440 | 315 | 620 | 2 | |||
| 216-148 | 28 | 450 | 650 | 367 | 720 | 3 | |||
| 216-149 | 30 | 450 | 506 | 367 | 910 | 3 | |||
| 216-150 | 40 | 600 | 670 | 525 | 910 | 2 |
